MLA17A10-0709S0250-C5-S02
Can't find what you're looking for? Go to the Product Selector

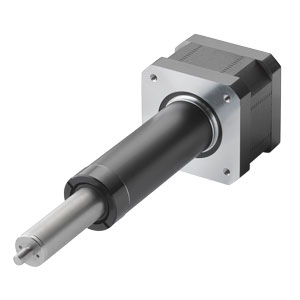

Motorized Lead screw Actuator, NEMA 17, 0.003545 英寸 Travel/Step, 2.5 英寸 Stroke, M4x0.7 x 6.73 mm Male Thread End Mounting, Single Stack, 1 A
- Motor comes standard with ?ying leads
- Cover tube length (L) = stroke (S) + 1.16 in. (29.5 mm).
- Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
- 噪音更低。

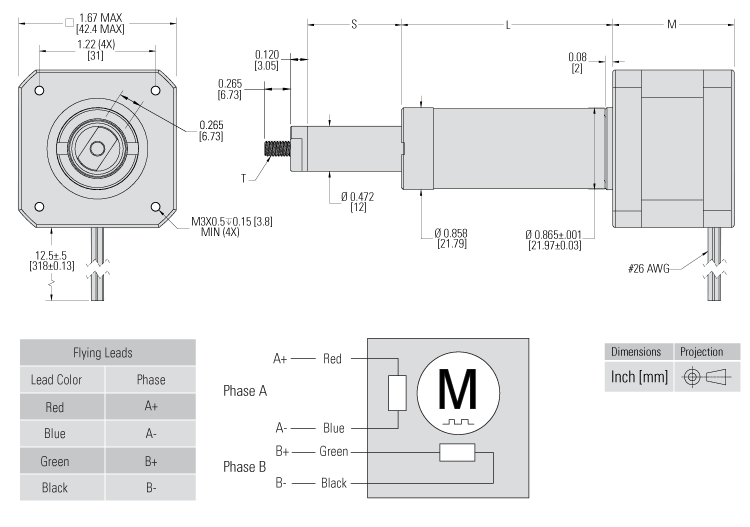

| 尺寸 | 價(jià)值 |
|---|---|
| [L] | 3.66 英寸 |
| [M] | 1.34 英寸 |
| [S] | 2.5 英寸 |
| [T] | M4x0.7 Male Thread |
| Screw, Lead | 0.709 英寸 |
| Travel/Step | 0.00355 英寸 |

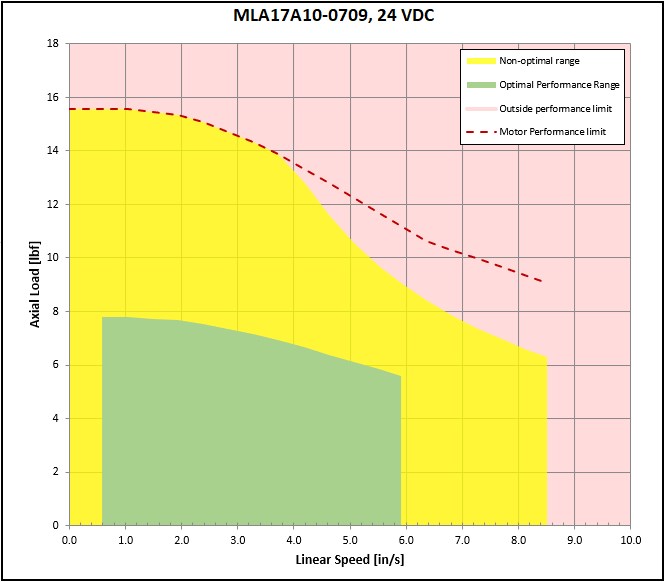

| Performance | 價(jià)值 |
|---|---|
| Load, Max @ Max Speed | 5.6 磅力 |
| Load, Max @ Min Speed | 7.7 磅力 |
| Max Speed (Recommended) | 5.9 英寸每秒 |
| Motor, Step Angle | 1.8 ° |
| Screw, Lead Accuracy | 0.01 in/ft |
| Travel/Step | 0.00355 英寸 |
